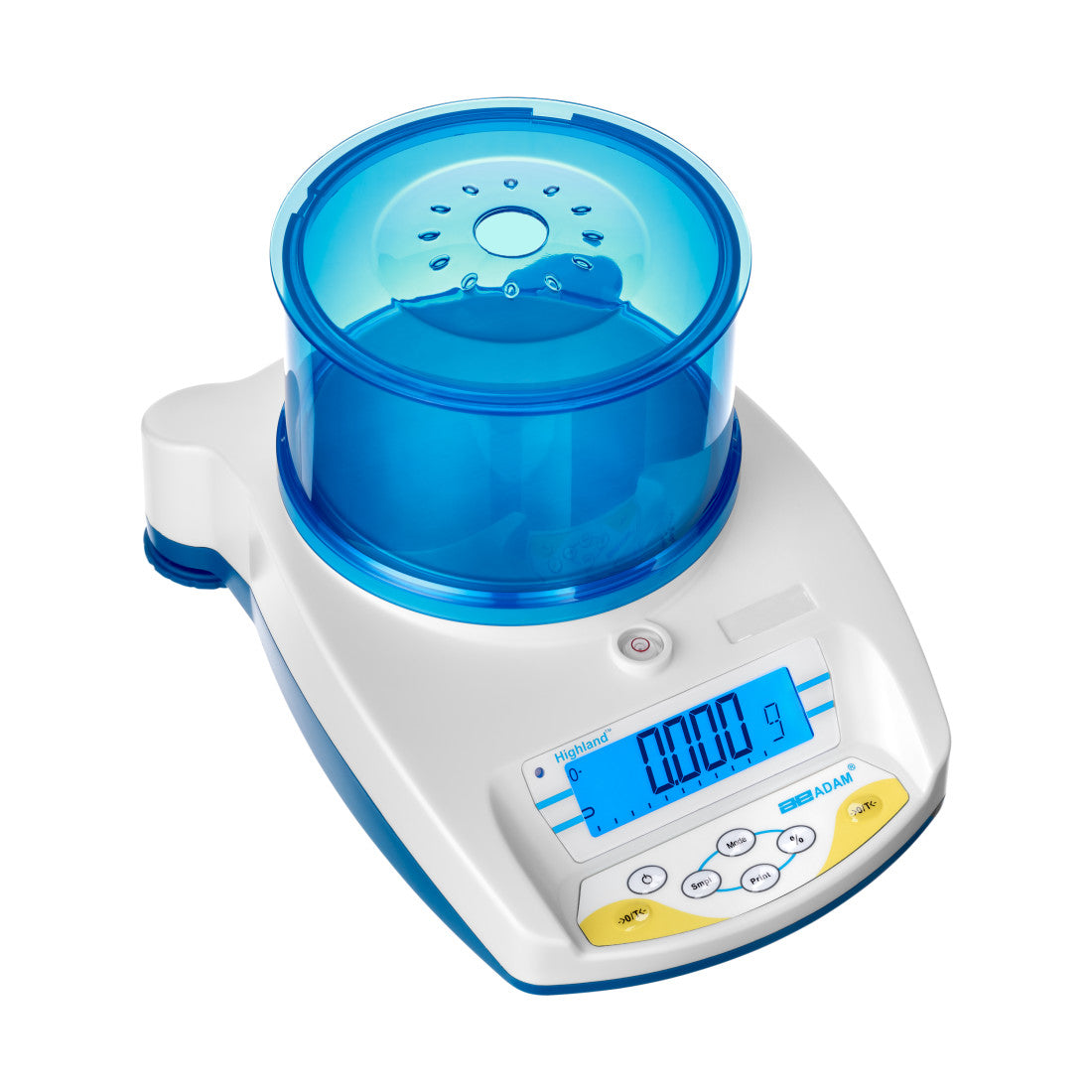

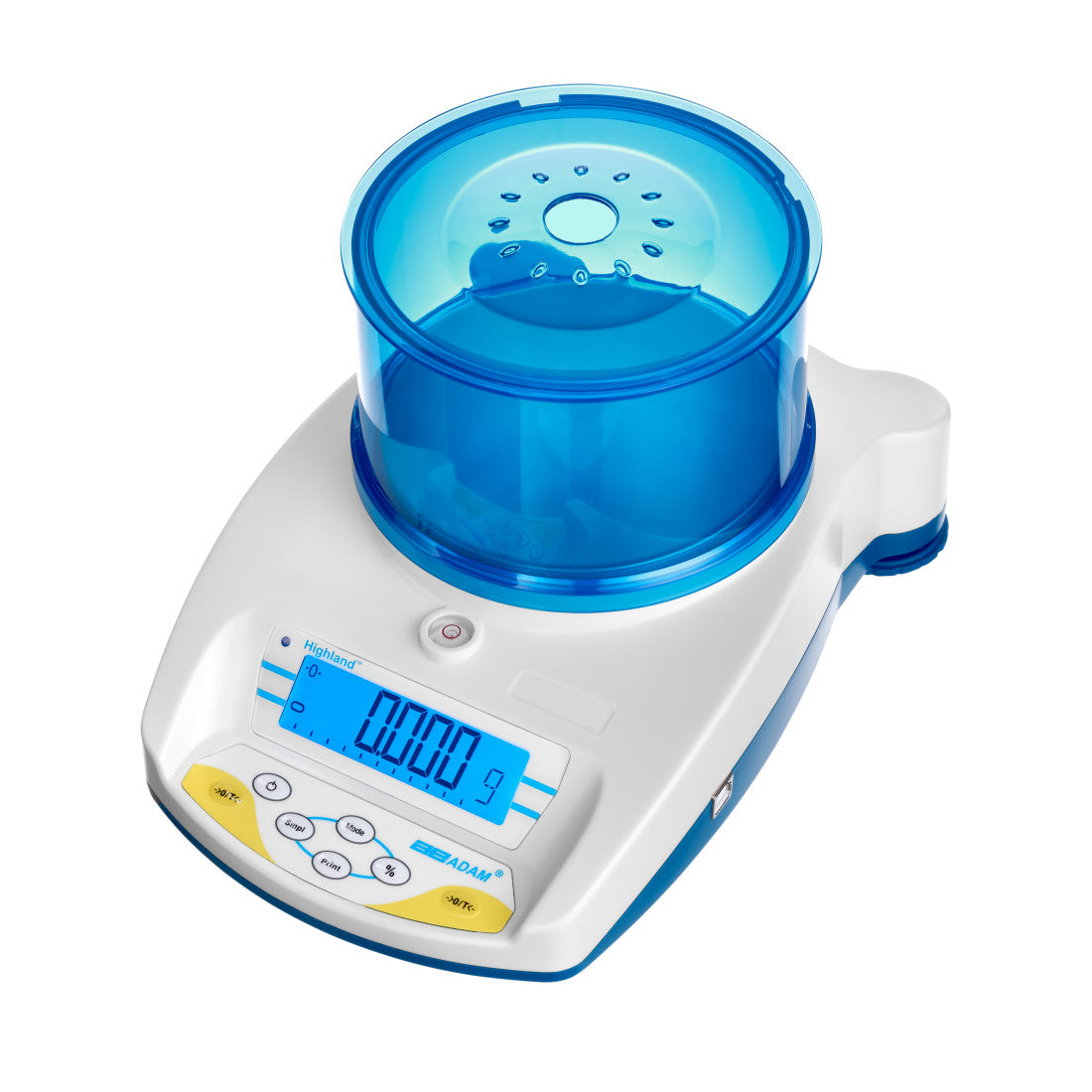

Highland® Portable Precision Balance-HCB 602, Capacity 600g, Readability 0.02g

The Highland® offers advanced features in a compact, durable balance that stacks for easy storage. Suitable for many tasks, Highland provides fast, accurate weighing in a number of different environments – from science research in the laboratory or field, to manufacturing operations. Sturdy ABS construction allows the Highland to stand up to demanding lab use, while Highland’s ShockProtect® offers advanced overload protection to keep the balance safe. HandiCal® facilitates internal calibration without the need for external weights.

Features and Benefits

• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Capacity tracker built into display for easily monitoring possible overloads
• Balances stack efficiently and safely to save space (120mm pan size only)
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• Dual tare keys operate with either the left or right hand
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Large, grade 304 stainless steel pan allows easy cleaning
• Solid ABS housing is durable for industrial use
• Three-point ShockProtect® feature helps prevent overload damage to internal components
• Hook included for weighing below the balance
• HandiCal® internal calibration eliminates need for external weight set

• USB and RS-232 interfaces provide speedy communication with computers and printers
• AC adapter included
• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy
• Audible overload alarm warns when capacity is exceeded
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering helps minimise effects of vibration and disturbances
• Parts counting with preset sample sizes
• Memory accumulation totals results
• Zero-tracking feature ensures display returns to zero reading
• Security slot for optional lock and cable to help prevent theft
• A 3-year warranty means quality assured for years of use.

Technical specification

Model

HCB 602

UPC: 819309013181

Metrology

Capacity: 600g

Readability: 0.02g

Repeatability: 0.01g

Linearity: 0.02g

Minimum Weight USP: 1g

General Specifications

Pan Size: 120mm ø

Weighing Units: ct, dr, dwt, g, GN, lb, mm, N, oz, ozt, T, tl.H, tl.S, tl.T

Interface: RS-232/USB

Calibration: External calibration/Internal manual calibration

Display: Backlit LCD with 18mm high digits

Power

Battery Type: Lead Acid

Number of batteries: 1

Power Supply: 12VDC 800mA adapter / Internal rechargeable battery

Maximum Battery Life (in hours): 24

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: ABS plastic

Net Weight: 2kg

Dimensions

Draft Shield Type: Round

Overall Dimensions: 174x252x80mm
