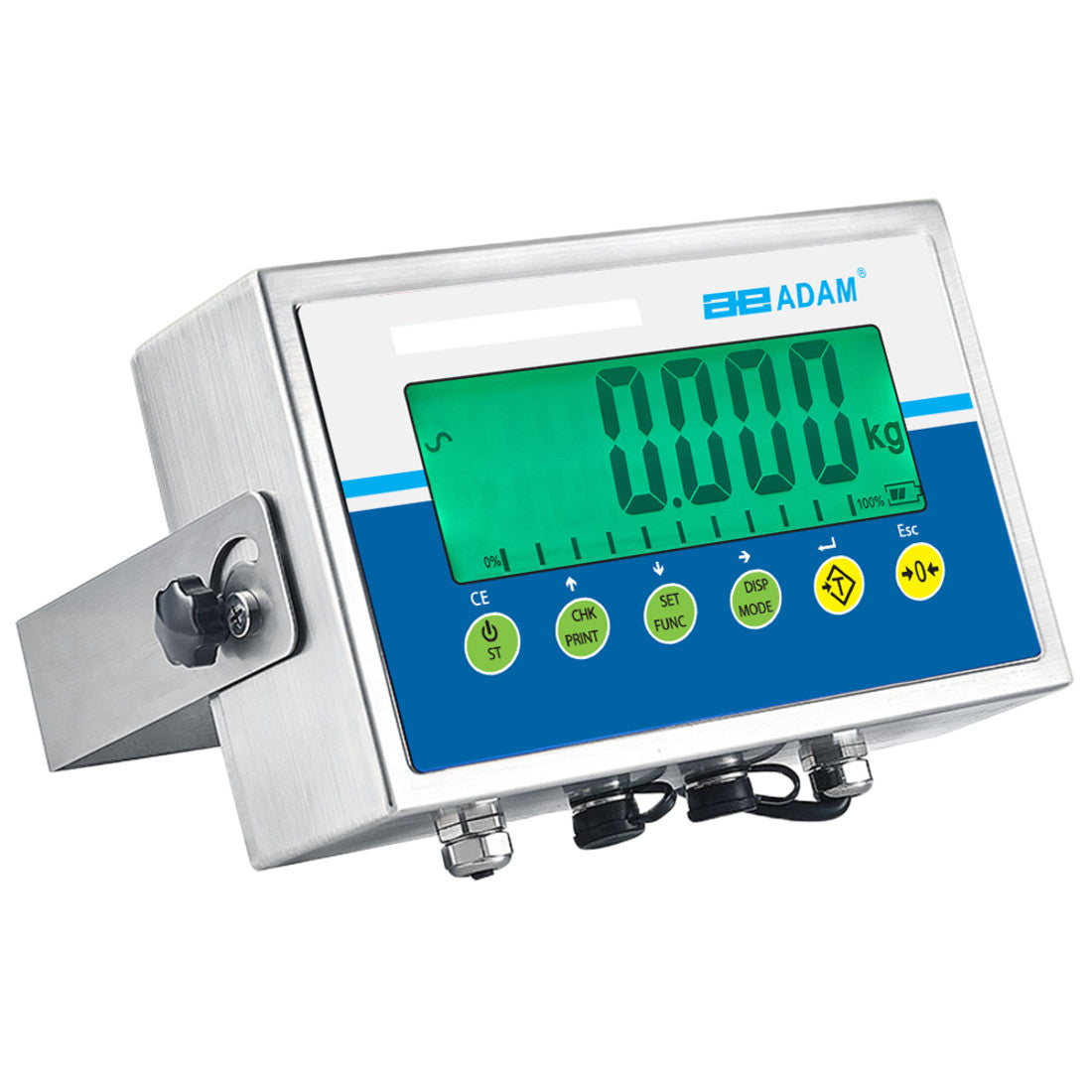

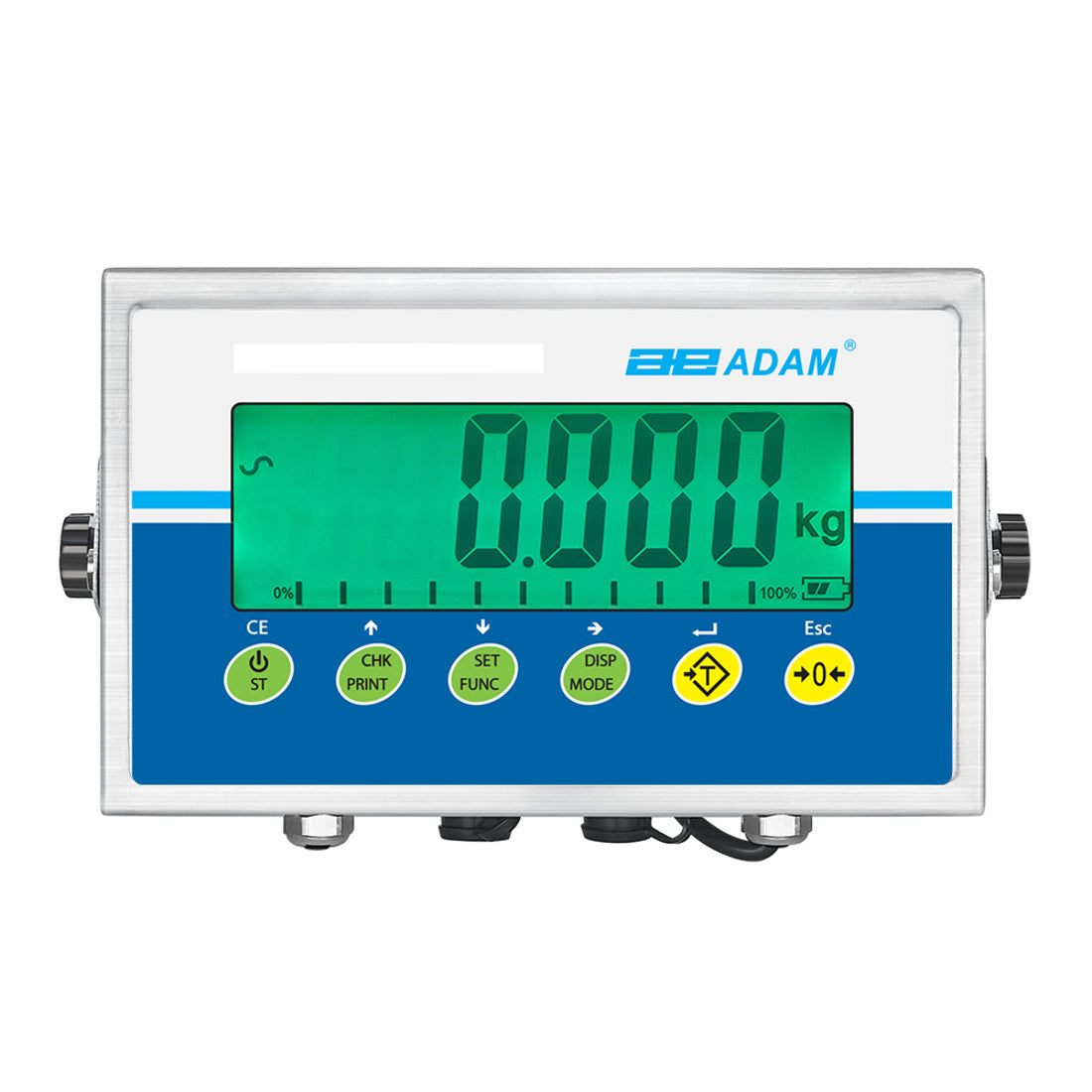

AE 403 Indicator-AE 403M Capacity: Selectable, Readability: 6,000 divisions, Trade Approved Models

A rugged stainless steel design and IP68 rating make AE 403 the right choice for a variety of industrial applications. The backlit display shows results in 40mm-high digits and changes color when the weight is over, under or within limits. Easily monitor overloads with the capacity tracker. The included bracket allows the AE 403 to be mounted on the wall or other vertical surface for optimum visibility and flexibility. The multi-function AE 403 indicator can be combined with weighing platforms to handle demanding industrial tasks. It performs well on the loading dock, at food processing plants, in agricultural settings, or in shipping and receiving areas. The AE 403 is the successor to the AE 402.

Features and Benefits

·       Backlit display changes colour for quick notification of checkweighing limits

·       Capacity tracker built into display for easily monitoring possible overloads

·       Colour-coded keys facilitate quick recognition of the most frequently used buttons

·       Robust metal housing protects internal components in harsh environments

·       Rugged stainless steel construction for ultimate durability

·       RS-232 interface provides speedy connection to computers and printers

·       Wall-mount bracket for placing indicator on vertical surface

·       External calibration allows for verification and adjustment with weights

·       Checkweighing with audible alarm

·       Hold function freezes the displayed weight, allowing time to elapse without losing the result

·       Parts counting with preset sample sizes

·       Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects

·       User-selectable scale division

·       Zero-tracking feature ensures display returns to zero reading

·       IP68-rated for protection against water and dust

·       Rechargeable battery included for operation almost anywhere

·       Programmable auto power-off to save energy

·       1:1,600,000 Internal counting resolution for precise results

·       A 3-year warranty means quality assured for years of use.

Technical specification

Model

AE 403M

UPC: 840886105037

Metrology

Capacity: Selectable

Internal Counting Resolution: 1:1,600,000

General Specifications

Weighing Units: custom unit, g, kg, N

Stabilisation Time: 2

Interface: RS-232

Calibration: External calibration

Display: Backlit LCD with 40mm high digits

Power

Power Supply: Power cord / Internal rechargeable battery

Battery Type: Lead Acid

Number of batteries: 1

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: Stainless steel

Net Weight: 2.0kg

Dimensions

Overall Dimensions: 240x145x95mm

Compliance Information

Approvals: NMI trade approved, NRCS approved, NSF, EC type approved
