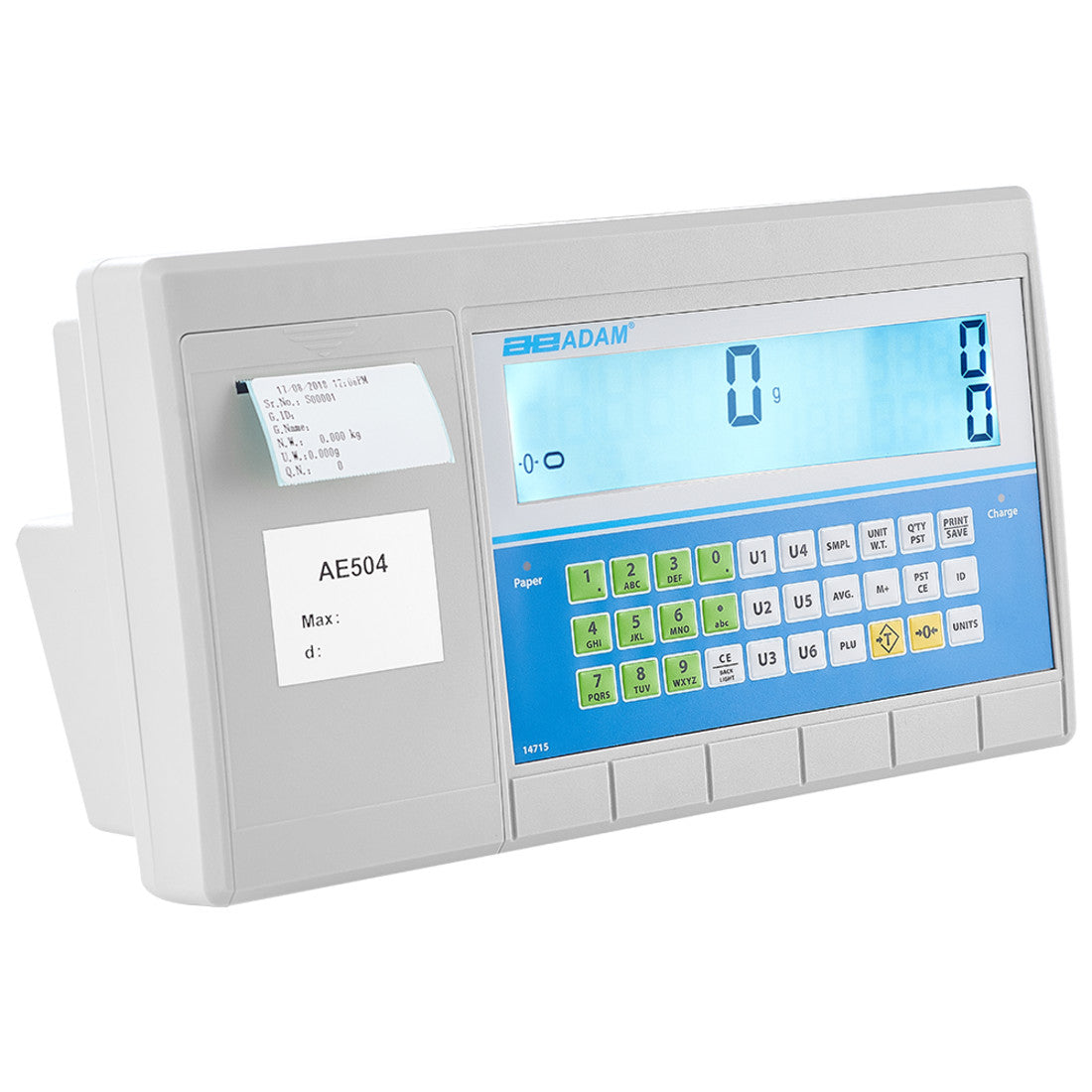

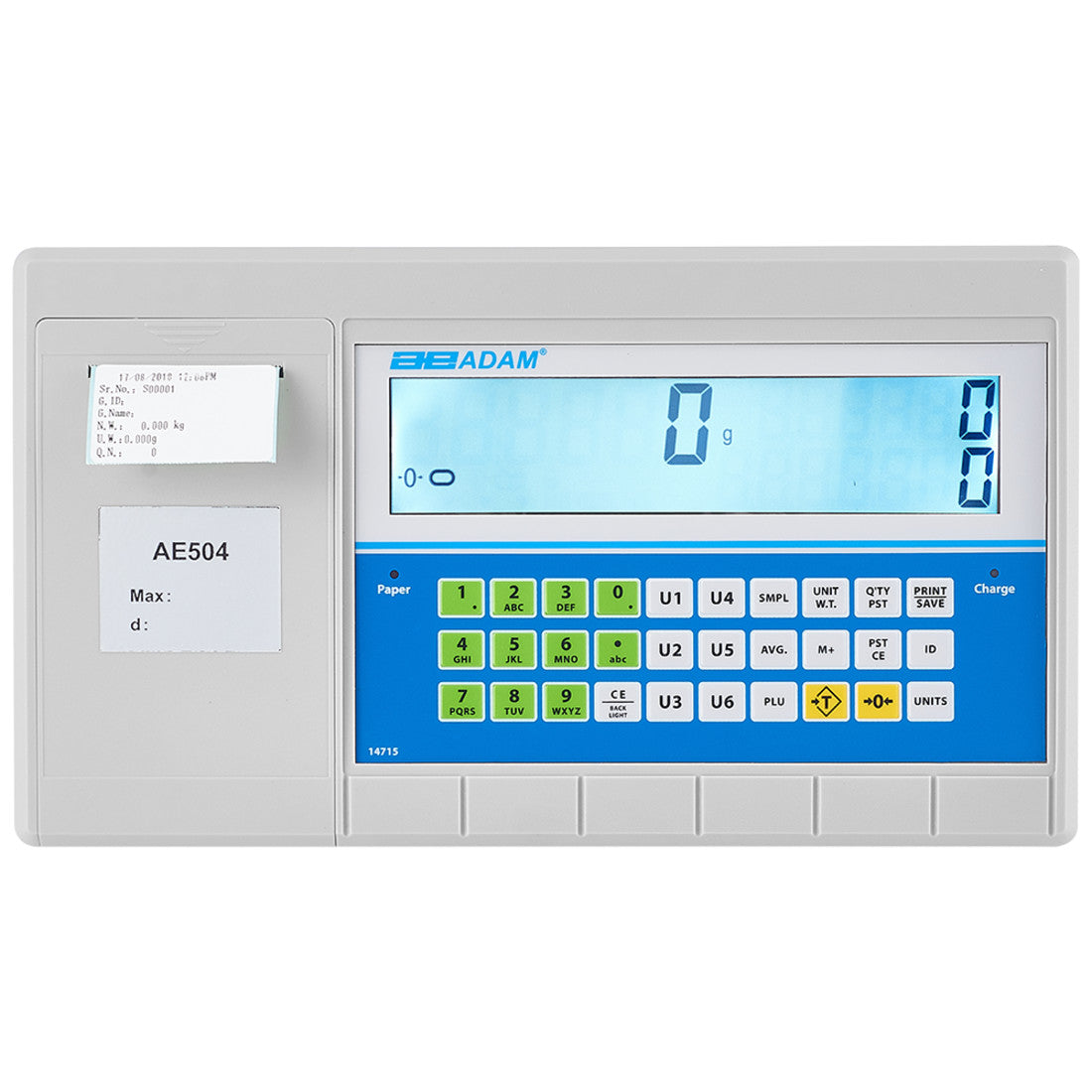

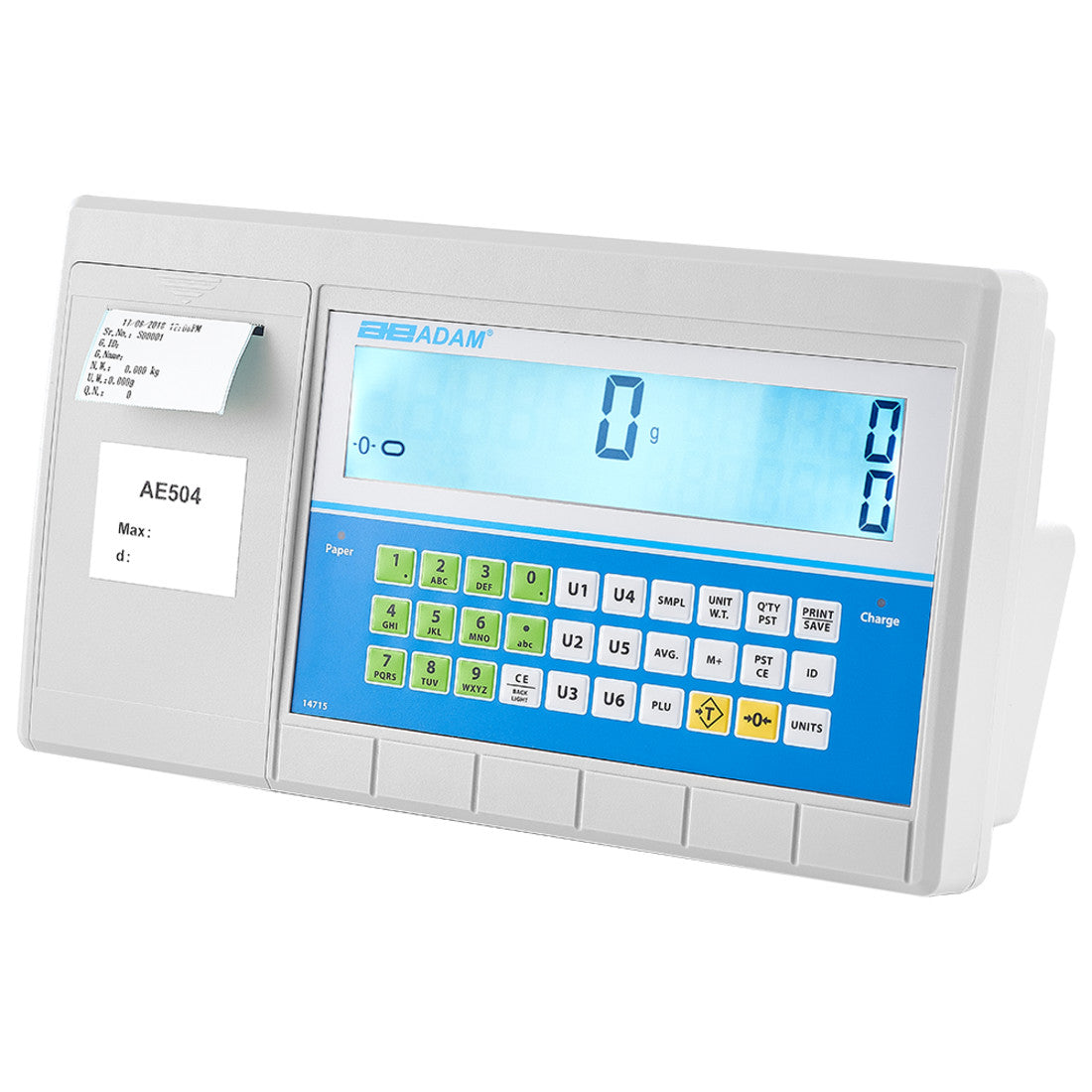

AE 504 Indicator-AE 504, Capacity: Selectable, Readability: 80,000 divisions

A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas. In addition to numerous weighing and counting applications, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels with the indicator’s integrated printer. The large, easy-to-read backlit LCD screen features 22mm-tall digits, while a color-coded numeric keypad allows quick and easy selection from 1,000+ PLUs or to manually enter tare weights, unit weights and sample sizes. NOTE: Not for use in retail applications

Features and Benefits

·       Vivid, backlit LCD easily visible in any lighting conditions

·       Programmable backlight can be set to "always on," "always off" or "light only when weighing"

·       Colour-coded keys facilitate quick recognition of the most frequently used buttons

·       RS-232 interface provides speedy connection to computers and printers

·       Rugged construction stands up to industrial use

·       Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages

·       Rechargeable battery included for operation almost anywhere

·       Programmable auto power-off to save energy

·       Zero-tracking feature ensures display returns to zero reading

·       Parts counting optimisation automatically refines piece weight as parts are added

·       Checkweighing with audible alarm

·       External calibration allows for verification and adjustment with weights

·       Quick and easy configuration using the keypad

·       User-selectable scale division

·       A 3-year warranty means quality assured for years of use.

Technical specification

Model

AE 504

UPC: 840886105587

Metrology

Capacity: Selectable

General Specifications

Weighing Units: g, kg, lb, oz

Interface: RS-232

Calibration: External calibration

Display: Backlit LCD with 22mm high digits

PLU Memories: 1006

Power

Power Supply: 12VDC 3A adapter / Internal rechargeable battery

Battery Type: Lead Acid

Number of batteries: 1

Maximum Battery Life (in hours): 200

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: ABS plastic

Net Weight: 2.14kg

Dimensions

Overall Dimensions: 297x121x168mm
