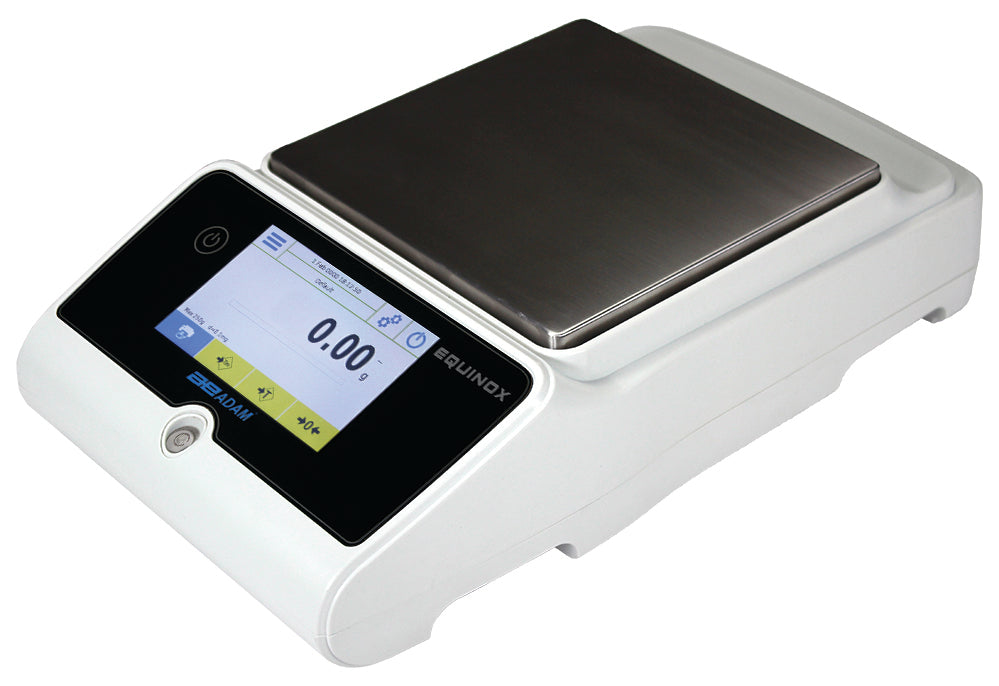

Equinox Precision Balance-ETB 3202i, Capacity 3200g,Readability 0.01g, internal calibration

Equinox precision balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. Twelve precision models offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g. A colour touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.

Features and Benefits

• Large, responsive 5’’ 800x480 pixel touch-screen display
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Large, grade 304 stainless steel pan allows easy cleaning
• RS-232 interface provides speedy connection to computers and printers
• USB host for memory card
• AC adapter included
• Built-in memory for storing products and settings
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering helps minimise effects of vibration and disturbances

• Security password control prevents unauthorised access
• Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
• Preset tare function speeds the process of repetitive weighing
• Parts counting with freely selectable sample sizes
• Multilingual display allows use in many different countries
• Memory accumulation totals results
• Checkweighing with audible alarm
• Security slot for optional lock and cable to help prevent theft
• A 5-year warranty means quality assured for years of use.

Technical specification

Model

ETB 3202i

UPC: 840886104757

Metrology

Capacity: 3200g

Readability: 0.01g

Repeatability: 0.005g

Linearity: 0.02g

Minimum Weight USP: 20g

General Specifications

Pan Size: 185x185mm

Weighing Units: ct, custom unit, dwt, g, GN, lb, mm, oz, ozt, T, tl.H, tl.S, tl.T

Interface: RS-232/USB

Calibration: Internal automatic calibration

Display: Touchscreen with 13mm high digits

Power

Power Supply: 9VDC 1A adapter

Operating Conditions

Operating Temperature: 10° to 30°C / 50° to 86°F

Product Information

Construction: ABS plastic

Net Weight: 6.8kg

Dimensions

Overall Dimensions: 224x374x95mm
