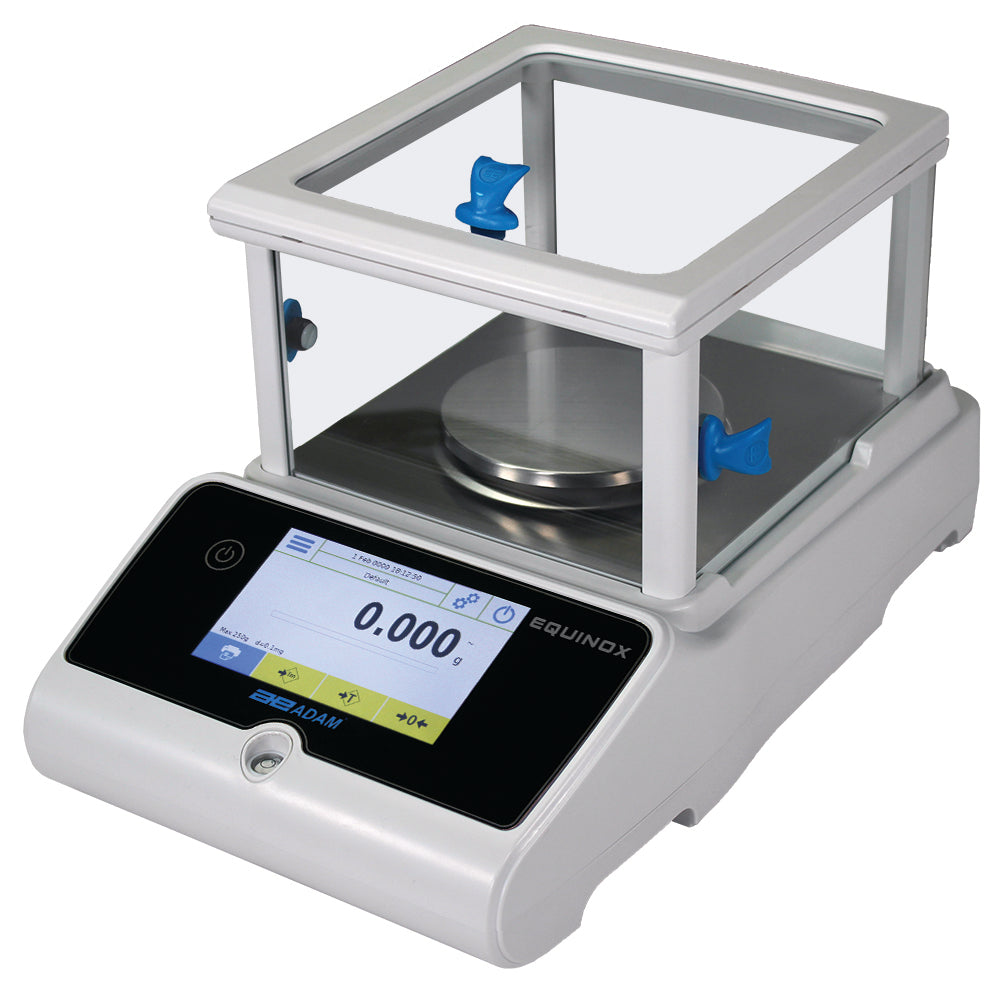

Equinox Precision Balance-EPB 1203i, Capacity 1200g, Readability 0.001g, internal calibration

Equinox precision balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. Twelve precision models offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g. A colour touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.

Features and Benefits

• Large, responsive 5’’ 800x480 pixel touch-screen display
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Large, grade 304 stainless steel pan allows easy cleaning
• RS-232 interface provides speedy connection to computers and printers
• USB host for memory card
• AC adapter included
• Built-in memory for storing products and settings
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering helps minimise effects of vibration and disturbances

• Security password control prevents unauthorised access
• Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
• Preset tare function speeds the process of repetitive weighing
• Parts counting with freely selectable sample sizes
• Multilingual display allows use in many different countries
• Memory accumulation totals results
• Checkweighing with audible alarm
• Security slot for optional lock and cable to help prevent theft
• A 5-year warranty means quality assured for years of use.

Technical specification

Model

EPB 1203i

UPC: 840886104726

Metrology

Capacity: 1200g

Readability: 0.001g

Repeatability: 0.001g

Linearity: 0.003g

Minimum Weight USP: 2g

General Specifications

Pan Size: 110mm ø

Weighing Units: ct, custom unit, dwt, g, GN, lb, mg, mm, oz, ozt, T, tl.H, tl.S, tl.T

Interface: RS-232/USB

Calibration: Internal automatic calibration

Display: Touchscreen with 13mm high digits

Power

Power Supply: 24VDC 1A Adapter

Operating Conditions

Operating Temperature: 10° to 30°C / 50° to 86°F

Product Information

Construction: ABS plastic

Net Weight: 6.9kg

Dimensions

Draft Shield Type: Chamber

Overall Dimensions: 224x374x219mm
