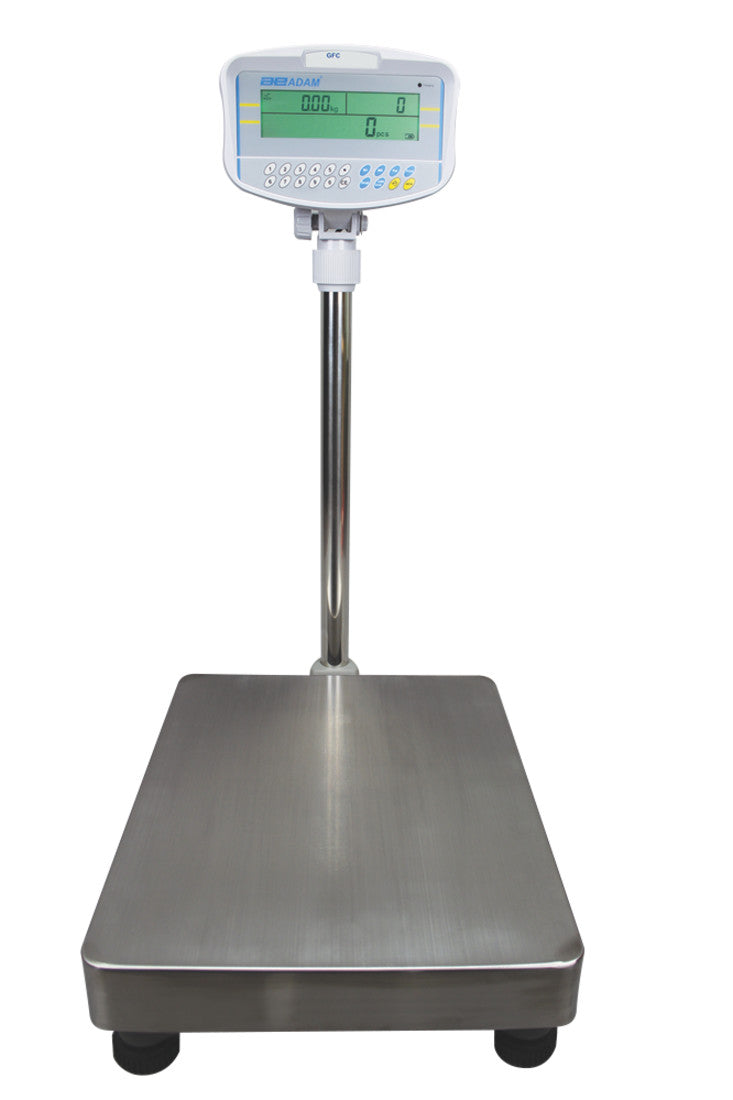

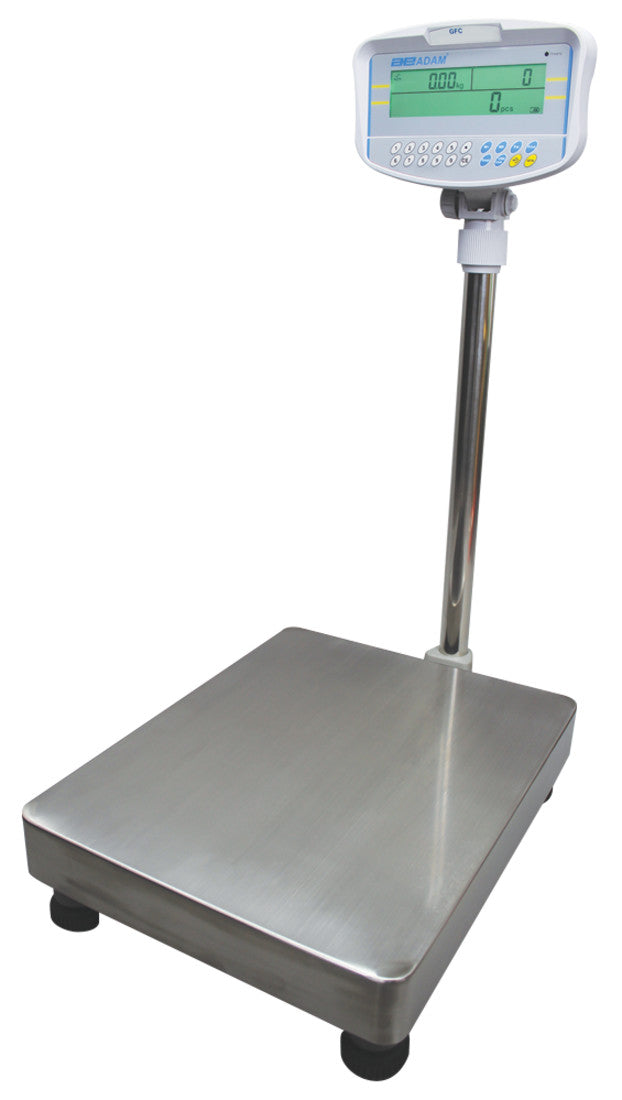

GFC Floor Counting Scale-GFC 300, Capacity 300kg, Readability 20g, Floor Scale

With features that facilitate checkcounting to a predefined weight or count, the GFC floor scale offers a full keypad for unit weight and sample entry. The large backlit display shows unit weight, total weight and number of pieces. A durable stainless steel platform and pillar-mounted ABS plastic indicator make the GFC suitable for most counting and weighing applications. The RS-232 interface simplies connections to printers and computers.

Features and Benefits

·       Backlit LCD shows weight, unit weight and count in one convenient location

·       Programmable backlight can be set to "always on," "always off" or "light only when weighing"

·       Adjustable levelling feet help optimise setup

·       Colour-coded keys facilitate quick recognition of the most frequently used buttons

·       Large, grade 304 stainless steel pan allows easy cleaning

·       RS-232 interface provides speedy connection to computers and printers

·       Rugged construction stands up to industrial use

·       Rechargeable battery included for operation almost anywhere

·       Programmable auto power-off to save energy

·       Audible overload alarm warns when capacity is exceeded

·       External calibration allows for verification and adjustment with weights

·       1:1,600,000 Internal counting resolution for precise results

·       Parts counting with freely selectable sample sizes

·       Parts counting optimisation automatically refines piece weight as parts are added

·       Preset tare function speeds the process of repetitive weighing

·       Selectable digital filtering helps minimise effects of vibration and disturbances

·       Zero-tracking feature ensures display returns to zero reading

·       User can program alarm to sound when preset total is reached

·       Built-in memory for storing products and settings

·       A 5-year warranty means quality assured for years of use.

Technical specification

Model

GFC 300

UPC: 819309012887

Metrology

Capacity: 300kg

Readability: 0.02kg

Repeatability: 20g

Linearity: 40g

Internal Counting Resolution: 1:600,000

General Specifications

Pan Size: 500x400mm

Weighing Units: kg

Stabilisation Time: 2

Interface: RS-232/Optional USB

Calibration: External calibration

Display: Backlit LCD with 20mm high digits

Power

Power Supply: Power cord / Internal rechargeable battery

Battery Type: Lead Acid

Number of batteries: 1

Maximum Battery Life (in hours): 70

Operating Conditions

Operating Temperature: -10° to 40°C / 14° to 104°F

Product Information

Construction: ABS plastic indicator with die-cast aluminum base

Net Weight: 12.5kg

Dimensions

Overall Dimensions: 400x620x860mm
