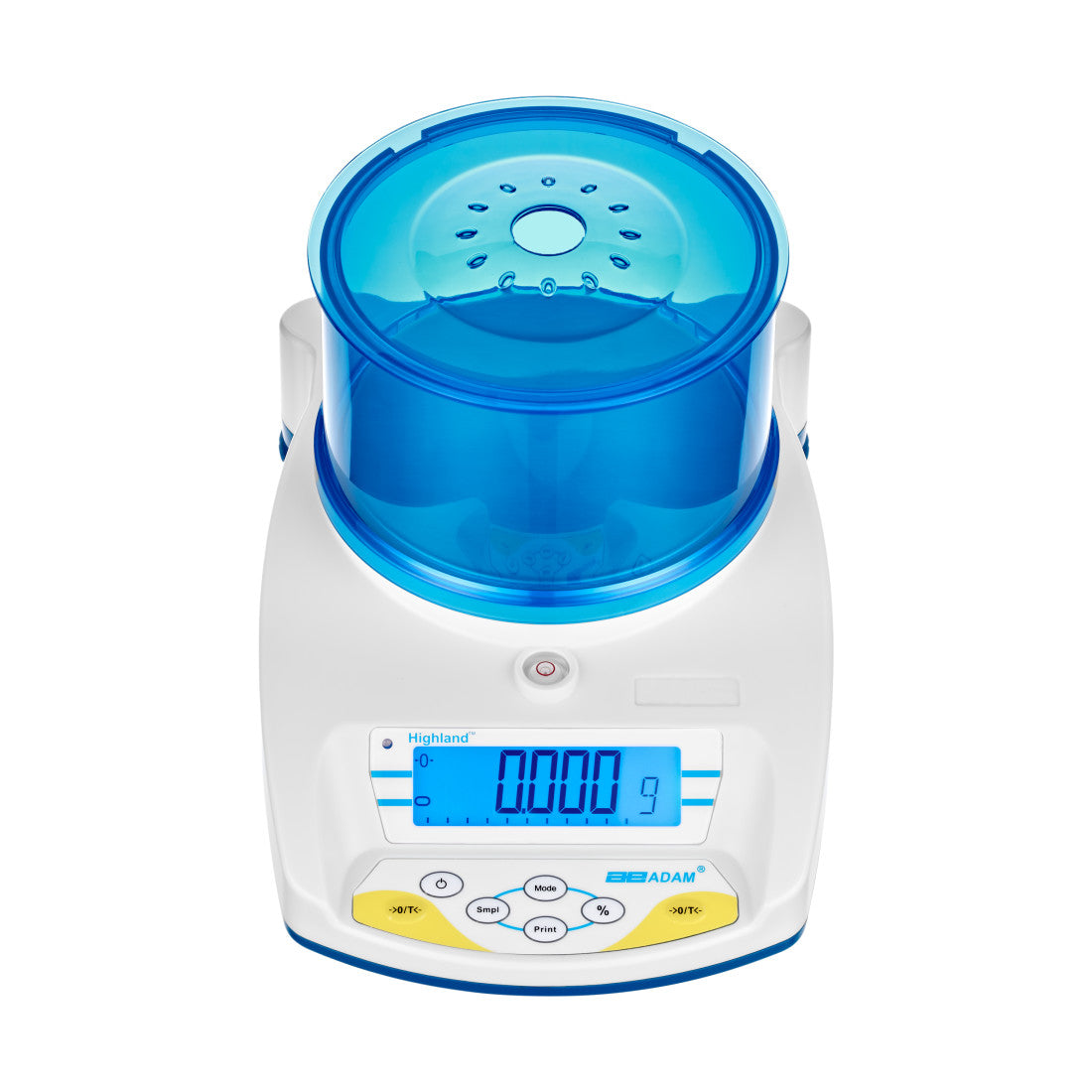

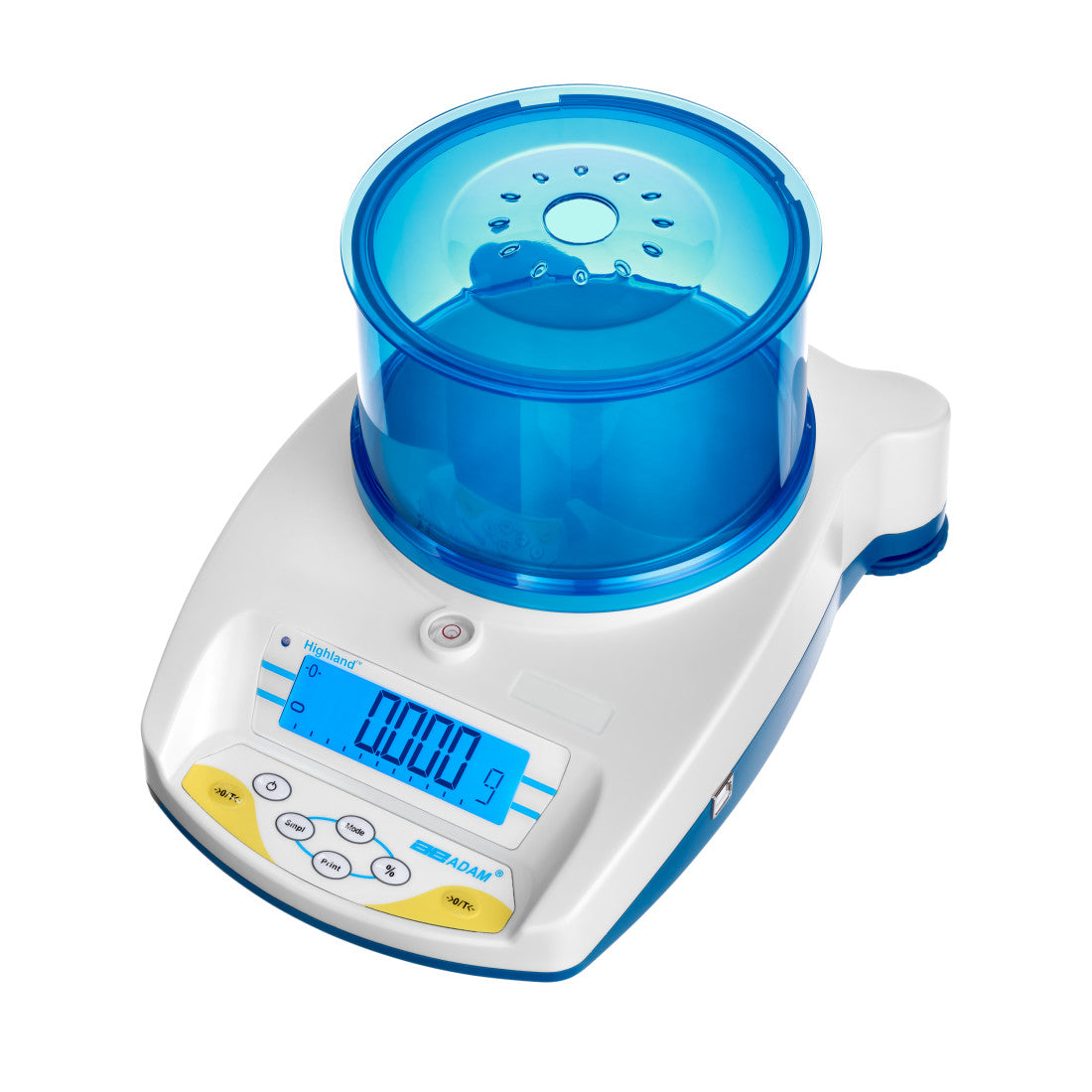

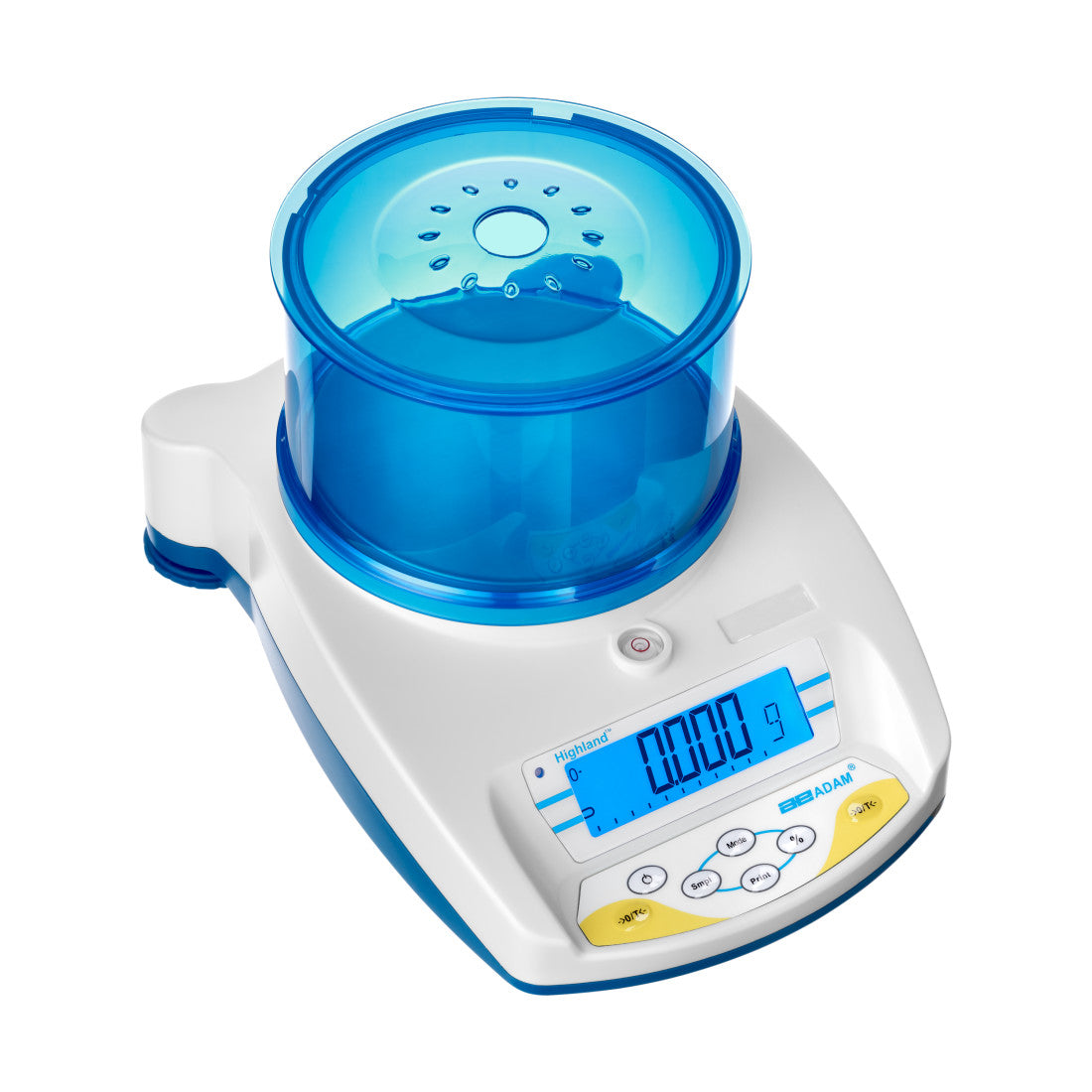

Highland® Approved Portable Precision Balance-HCB 602M, Capacity 600g, Readability d=0.01g, e=0.1g

Highland approved portable precision balances are packed with features and meet Class II requirements for use in retail applications. Readings are provided in carats, grams, or kilograms. The Highland includes RS-232 and USB interfaces, rechargeable battery and AC operation, capacity tracker, adjustable feet and level, lockdown capability and more. An innovative design allows the Highland to be stacked, minimising required storage space for multiple balances, and a removable draft shield counters the effects of wind disturbances outdoors or in drafty environments. ShockProtect® helps prevent overloads to maintain smooth, uncompromised performance. With built-in applications for parts counting, percentage weighing and totalisation / accumulation, the EC Type/OIML-approved Highland is an outstanding value for legal-for-trade applications.

Features and Benefits

• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Capacity tracker built into display for easily monitoring possible overloads
• Balances stack efficiently and safely to save space (120mm pan size only)
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• Dual tare keys operate with either the left or right hand
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Large, grade 304 stainless steel pan allows easy cleaning
• Solid ABS housing is durable for industrial use
• Three-point ShockProtect® feature helps prevent overload damage to internal components
• USB and RS-232 interfaces provide speedy communication with computers and printers

• AC adapter included
• Rechargeable battery included for operation almost anywhere
• Programmable auto power-off to save energy
• Audible overload alarm warns when capacity is exceeded
• Selectable digital filtering helps minimise effects of vibration and disturbances
• Parts counting with preset sample sizes
• Memory accumulation totals results
• Zero-tracking feature ensures display returns to zero reading
• Security slot for optional lock and cable to help prevent theft
• A 3-year warranty means quality assured for years of use.

Technical specification

Model

HCB 602M

UPC: 840886101190

Metrology

Capacity: 600g

Readability: d=0.01g e=0.1g

Repeatability: 0.02g

Linearity: 0.03g

Minimum Weight USP: 0.5g

General Specifications

Pan Size: 120mm ø

Weighing Units: ct, g, kg

Stabilisation Time: 2

Interface: RS-232/USB

Display: Backlit LCD with 18mm high digits

Power

Battery Type: Lead Acid

Number of batteries: 1

Power Supply: 12VDC 800mA adapter / Internal rechargeable battery

Maximum Battery Life (in hours): 24

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: ABS plastic

Net Weight: 2kg

Dimensions

Draft Shield Type: Round

Overall Dimensions: 174x252x80mm

Compliance Information

Approvals: EC type approved
