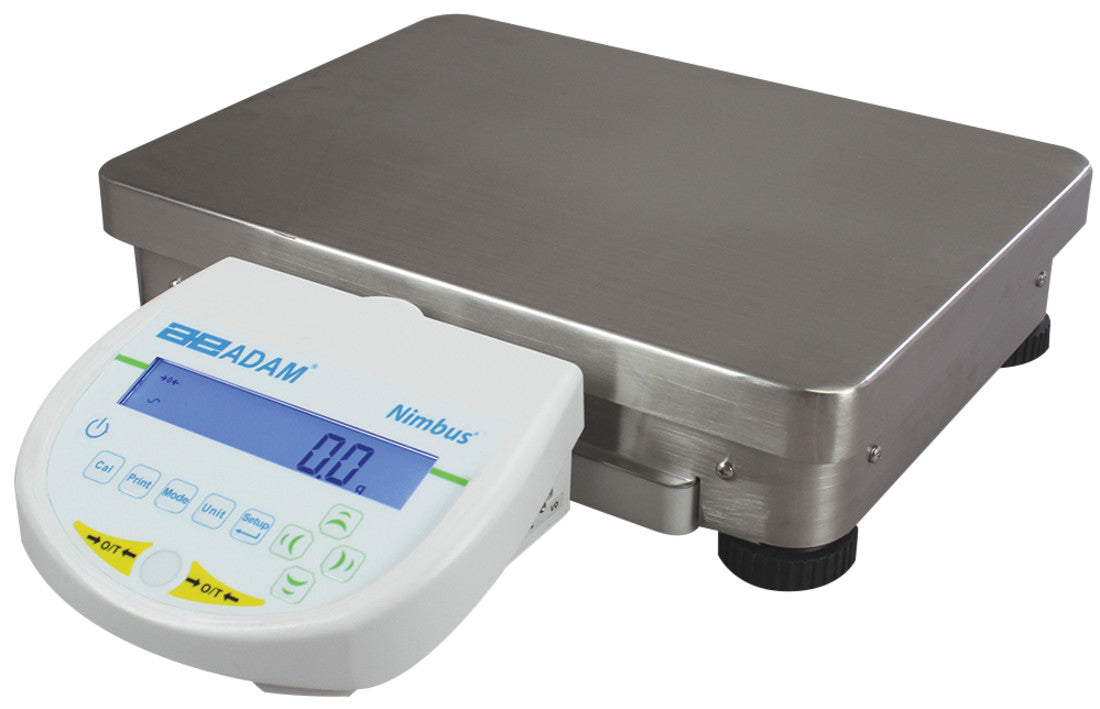

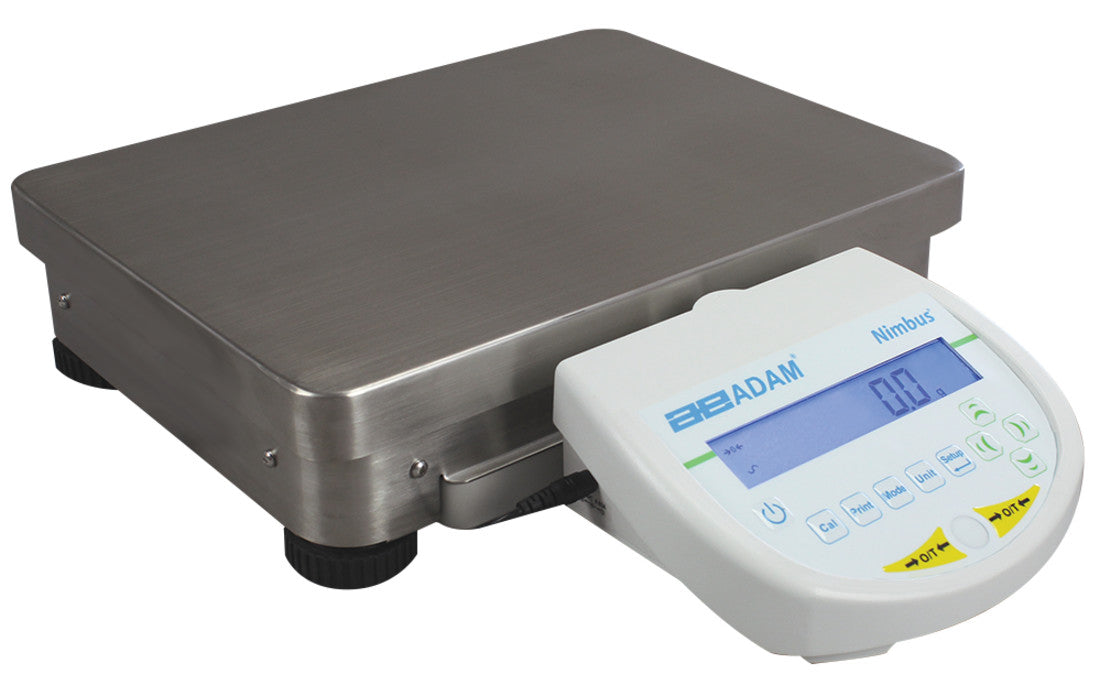

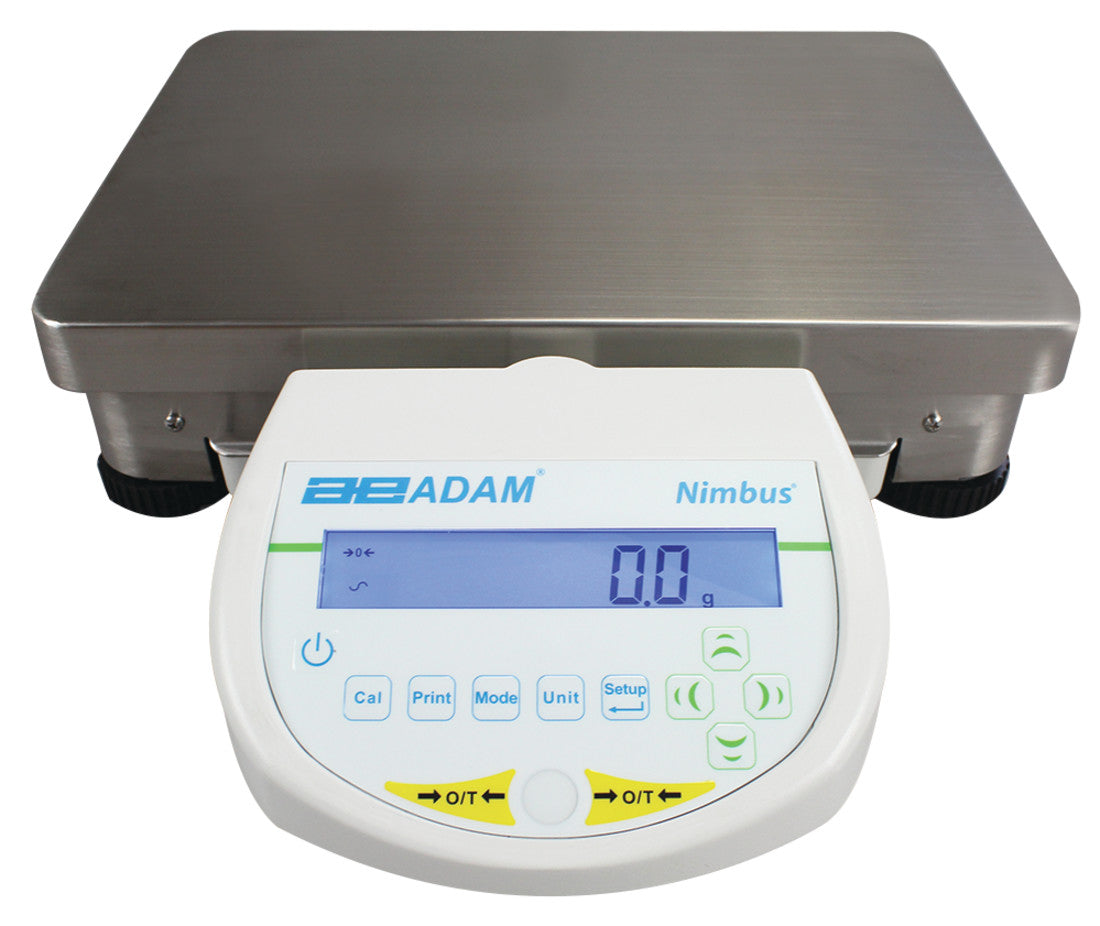

Nimbus® Heavy Duty Precision Balance-NBL 32001E, Capacity 32000g, Readability 0.1g, body mounted balance

Durable and reliable, Nimbus precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space but retains a high level of performance. The single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block, and contains fewer parts than a traditional force motor balance. This optimised internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.

Features and Benefits

• Vivid, backlit LCD easily visible in any lighting conditions
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Robust metal housing protects internal components in harsh environments
• Sealed keypad protects against dirt and spills
• USB and RS-232 interfaces provide speedy communication with computers and printers
• Large, grade 304 stainless steel pan allows easy cleaning

• AC adapter included
• External calibration allows for verification and adjustment with weights
• Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
• Selectable digital filtering helps minimise effects of vibration and disturbances
• Zero-tracking feature ensures display returns to zero reading
• Multilingual display allows use in many different countries
• A 5-year warranty means quality assured for years of use.

Technical specification

Model

NBL 32001e

UPC: 819309019077

Metrology

Capacity: 32000g

Readability: 0.1g

Repeatability: 0.2g

Linearity: 0.4g

General Specifications

Pan Size: 300x400mm

Weighing Units: ct, custom unit, dwt, g, GN, kg, lb, N, oz, ozt

Stabilisation Time: 3

Interface: RS-232/USB

Calibration: External calibration

Display: Backlit LCD with 20mm high digits

Power

Battery Type: NiMh

Power Supply: 18VDC 830mA adapter

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: Extruded aluminum base with a die-cast aluminum case

Net Weight: 7.3kg

Dimensions

Draft Shield Type: N/A

Overall Dimensions: 401x460x102mm
