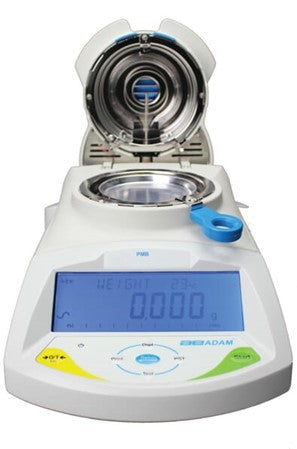

PMB Moisture Analyser-PMB 163, Capacity 160g, Readability 0.001g/0.01%

With simple operation and rapid response time, PMB moisture analysers offer the top value in their class. The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field. A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customise test methods and temperatures for different materials.

Features and Benefits

• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• Capacity tracker built into display for easily monitoring possible overloads
• Scratch-resistant aluminum housing protects internal components
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• Pan lifter allows easy placement and removal of samples
• RS-232 interface provides speedy connection to computers and printers
• USB host for memory card and USB I/O interface
• USB interface included for data communication
• Temperature range 50°C to 160°C in one-degree increments
• Mains power cord

• Three settings for heating sample include ramp-up, stepped temperatures and single temperature
• Four preset drying modes allow test routines for several products
• Audible overload alarm warns when capacity is exceeded
• Testing can be set to start automatically when lid closes
• Calibration for temperature and weight
• Multilingual display allows use in many different countries
• Quick and easy configuration using the keypad
• Zero-tracking feature ensures display returns to zero reading
• Internal memory stores 49 different recipes and up to 99 test results, while additional test results and settings can be stored on a flash drive
• Security slot for optional lock and cable to help prevent theft
• A 5-year warranty means quality assured for years of use.

Technical specification

Model

PMB 163

UPC: 840886101541

Metrology

Capacity: 160g

Readability: 0.001g / 0.01%

Repeatability: 0.001g

Linearity: 0.002g

General Specifications

Pan Size: 100mm ø

Weighing Units: %M, %S, ATRO %M, ATRO %S, g

Stabilisation Time: 3

Interface: RS-232/USB

Calibration: External calibration

Display: Backlit LCD with 24mm high digits

Power

Power Supply: Power cord

Operating Conditions

Operating Temperature: 0° to 40°C / 32° to 104°F

Product Information

Construction: Die-cast aluminum

Net Weight: 6kg

Dimensions

Draft Shield Type: N/A

Overall Dimensions: 250x360x185mm
