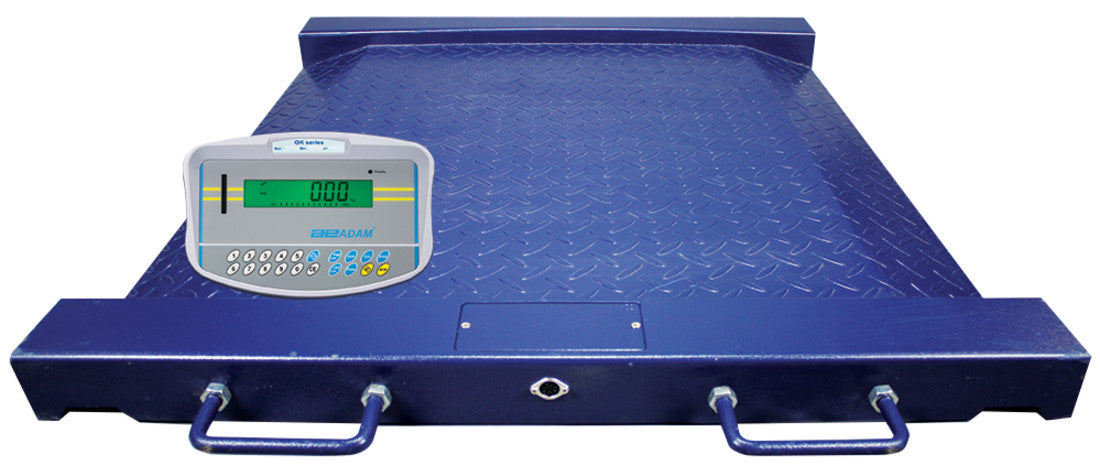

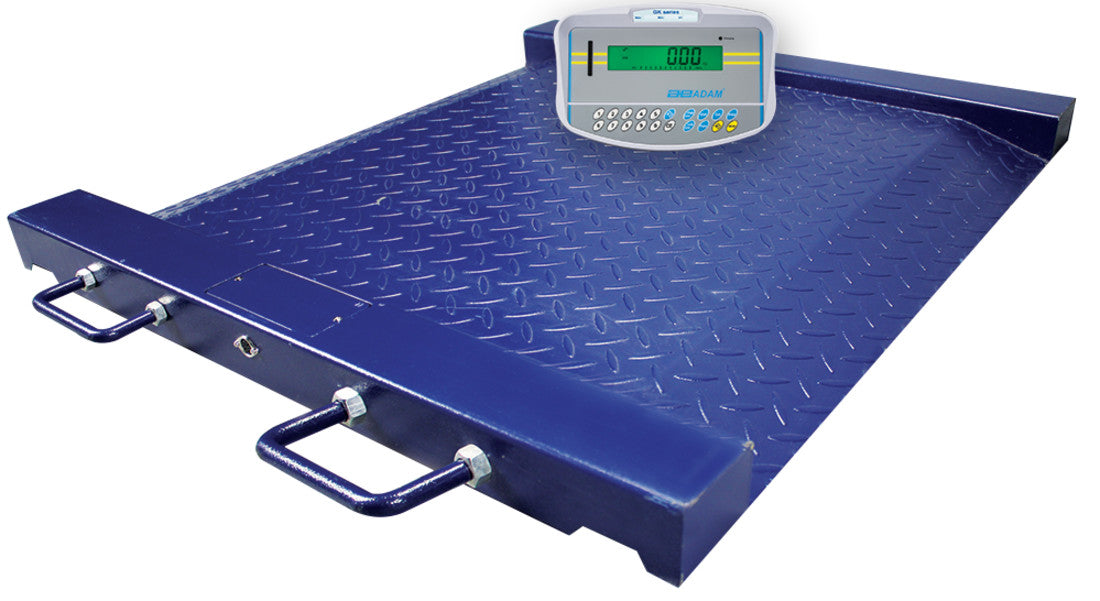

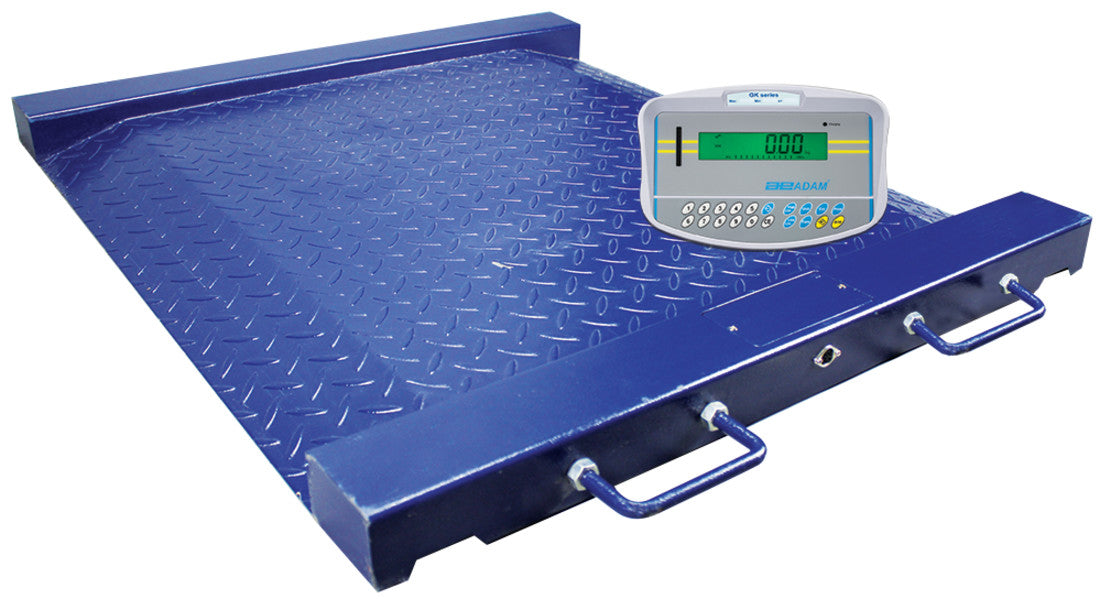

PTM Drum Platform-PTM 500 GK-S, Capacity 500kg, Readability 100g, Indicator

The PTM drum scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform.

Suitable for use in warehouses and other locations, the PTM drum scale is ideal for checking the weight of barrels and drums, or loaded dollies. The PTM can also be used for weighing wheelchair occupants or people with limited mobility. The PTM features a mild steel diamond plate surface that provides good grip and a solid, steady weighing area. Handles and wheels enable easy portability in a warehouse or other environments.

The PTM is available with the GK indicator or AE 403 indicator, offering a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE403 is IP68 rated for dusty and wet environments.

Features and Benefits

·       Adjustable levelling feet help optimise setup

·       Built-in ramps on each side enable easy access

·       Chequered plate surface for added grip

·       Heavy-duty rubber feet ensure stability of unit

·       Integrated wheels permit easy movement

·       Three-meter load cell cable

·       Rugged construction stands up to industrial use

·       Ramps allow easy access for wheelchair use

·       A 3-year warranty means quality assured for years of use.

Technical specification

Model

PTM 500 [GK]

UPC: 840886105396

Metrology

Capacity: 500kg

Readability: 0.1kg

Repeatability: 100g

Linearity: 200g

General Specifications

Pan Size: 580x760mm

Weighing Units: kg, lb, lb:oz, N, oz

Interface: RS-232

Calibration: External calibration

Display: Backlit LCD with 20mm high digits

Power

Power Supply: 12VDC 800mA adapter / Internal rechargeable battery

Maximum Battery Life (in hours): 70

Operating Conditions

Operating Temperature: -10° to 40°C / 14° to 104°F

Product Information

Construction: Mild steel base

Net Weight: 44kg
