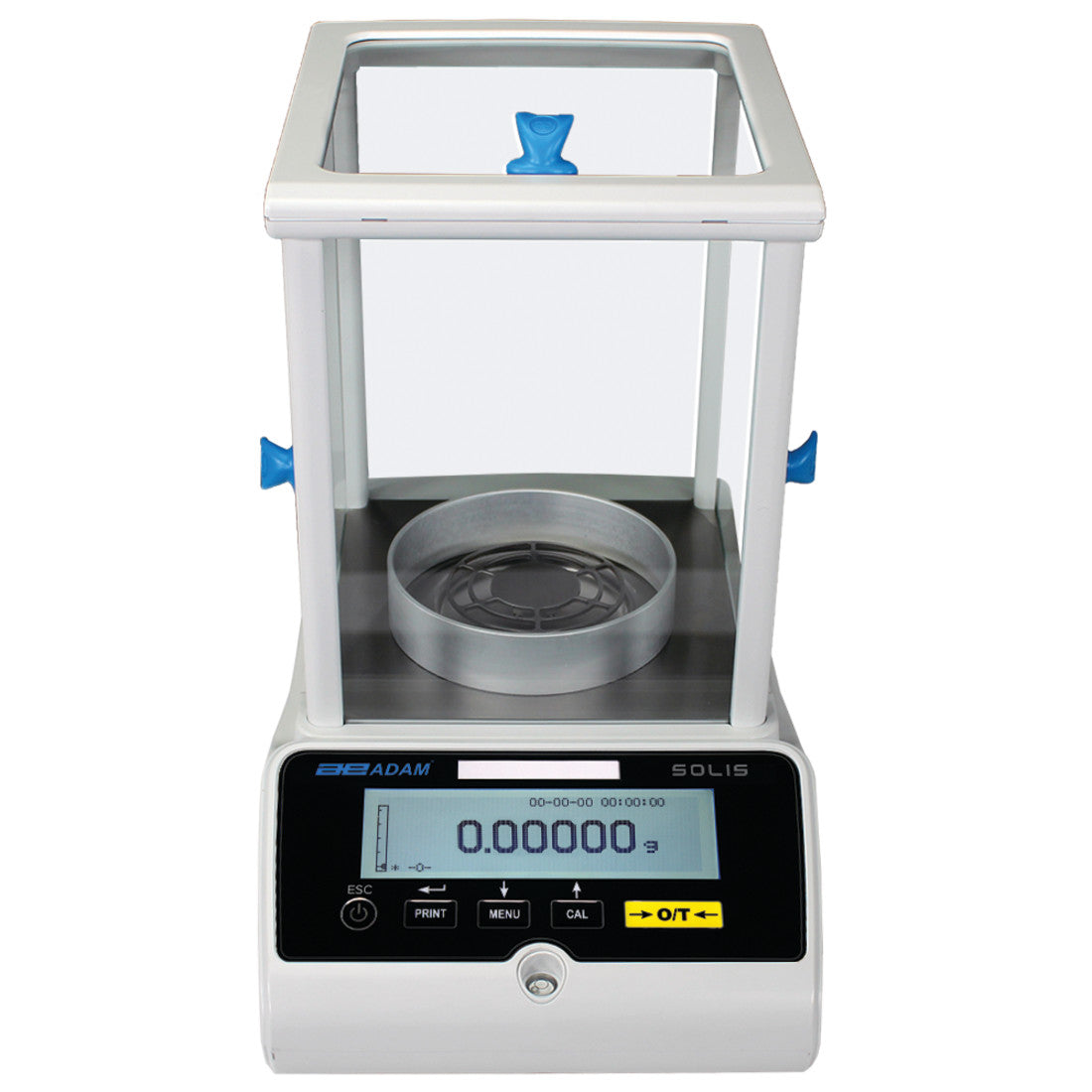

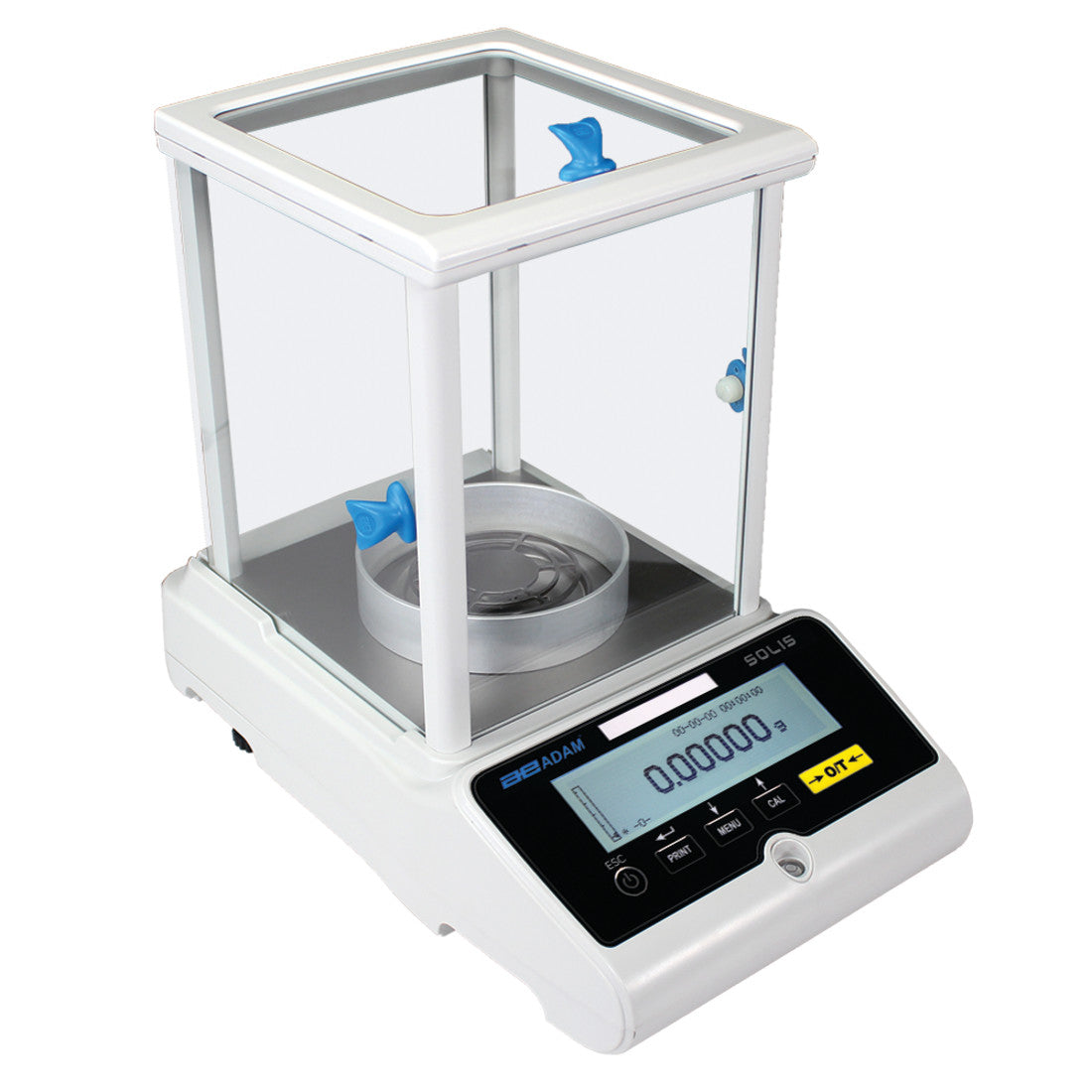

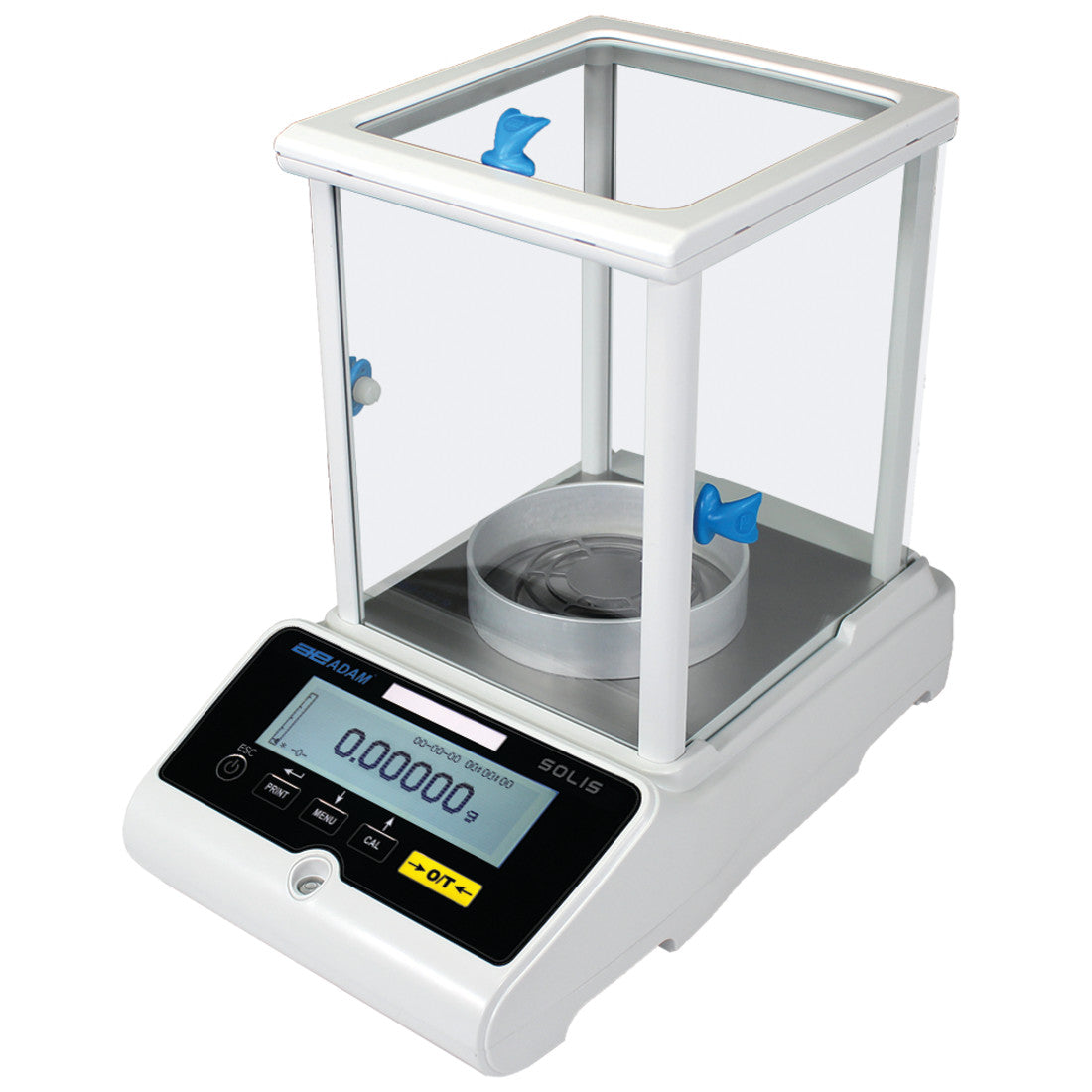

Solis Analytical and Semi-Micro Balance-SAB 314i, Capacity 310g, Readability 0.0001g, internal calibration

With a high-resolution graphic display and intuitive features, Solis analytical balances provide an outstanding solution for labs everywhere. The Solis is ideal for research and quality assurance labs; science education; precision counting; and production and manufacturing applications needing precision results. Users can readily view the comprehensive data on the amply sized graphic display. A multilingual display capability permits use of the balance in various regions, while recognisable icons help the weighing process flow smoothly. Formulation is simplified, as the Solis stores up to 99 ingredients.

Features and Benefits

• High-resolution graphic display is amply sized for clear visibility
• Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
• Large, grade 304 stainless steel pan allows easy cleaning
• RS-232 interface provides speedy connection to computers and printers
• AC adapter included
• External calibration allows for verification and adjustment with weights
• Selectable digital filtering helps minimise effects of vibration and disturbances

• Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
• Multilingual display allows use in many different countries
• Checkweighing with audible alarm
• Parts counting with preset sample sizes
• Security slot for optional lock and cable to help prevent theft
• A 5-year warranty means quality assured for years of use.

Technical specification

Model

SAB 314i

UPC: 840886104795

Metrology

Capacity: 310g

Readability: 0.0001g

Repeatability: 0.0001g

Linearity: 0.0004g

Minimum Weight USP: 200mg

General Specifications

Pan Size: 80mm ø

Weighing Units: ct, custom unit, dwt, g, GN, lb, mg, mm, oz, ozt, T, tl.H, tl.S, tl.T

Stabilisation Time: 4

Interface: RS-232

Calibration: Internal automatic calibration

Display: Graphic display with 15mm high digits

Power

Power Supply: 24VDC 1A Adapter

Operating Conditions

Operating Temperature: 10° to 30°C / 50° to 86°F

Product Information

Construction: ABS plastic

Net Weight: 7kg

Dimensions

Draft Shield Type: Chamber

Overall Dimensions: 224x374x338mm
